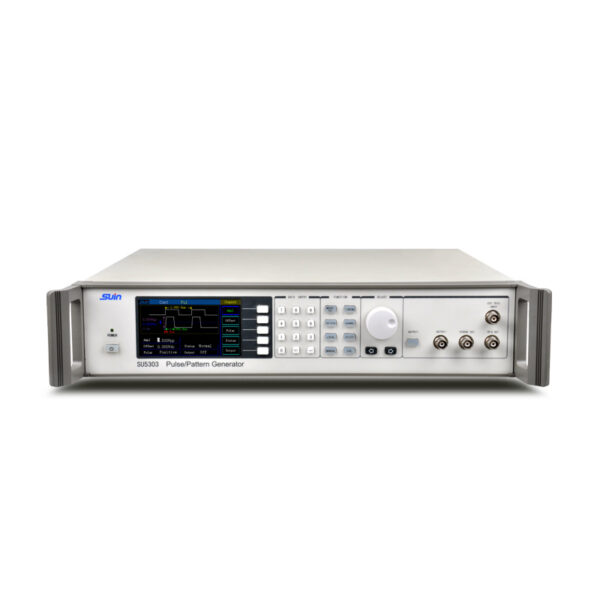

Генераторы импульсов/последовательностей Серия SU5000

SU5000 Series Digital Pattern Generator Features

* Direct Digital Synthesis Technology

* Crystal Oscillation Reference

* High Accurate Time and Frequency

* Count burst or single burst both can be selected

* Multiple output channels and EXT

* Trigger/Frequency Standard Input channels

* Data Storage and Recall

* Optional GPIB and USB interface

SU5000 Series Digital Pattern Generator Specifiations

	SU5101/5102	SU5202G	SU5302	SU5303
Channel	1/2	2	2	1
Waveform
Pulse	Single/Dobule, Logic Positive /Negative, Positive/Negative Polary	Single/Dobule, Logic Positive /Negative		Logic Positive /Negative
Edge Time	≤10ns	≤10ns	8ns ~ 1ms	8ns ~ 1ms
Overshoot	≤ 10%	≤ 10%	≤ 10%	≤ 5%
Time
Pulse Period	20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz)
Time Interval	5ns ~ 10000s			8ns ~ 9999.5s
Resolution	5ns (Low range), 10μs (High range)			0.1ns(typical)
Interval Error	± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs) (High range)			±(T×5×10-5+5ns)
Pattern	N/A		Length:4095bits	Length:16384bits
			Format:NRZ	Format:NRZ, RZ
			Rate:100mHz ~ 50MHz	Rate:2mHz ~ 50MHz
			Resolution: 0.1Hz
Amplitude Offset
Amplitude Range	50mV ~ 10V (High Z)	50mV ~ 5V (50Ω)	50mV ~ 5V (50Ω)	50mV ~ 5V (50Ω)
Offset Range	50mV ~ 10V (High Z)	50mV ~ 5V (50Ω)	50mV ~ 5V (50Ω)	-5V~ 5V (50Ω)
Output Impedance	50Ω
TTL
TTL/COMS Level	Low Level≤ 0.3V, High Level≥3.0V (high impedance load)
Output Impedance	50Ω
Burst
Burst Count	2 ~ 65000 cycles
Burst Mode	Continuous, Signle
EXT. STD Input
Frequency	10M mutiple
Amplitude	0.5-5Vpp, AC coupling
Trigger
Trigger Mode	Internal, External, Manual
Ext. Trigger Input	Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp
Input Impedance	≥100kΩ
General Characteristics
Power	AC110-240V, 50/60Hz,<80VA
Display	VFD	5.7′ TFT LCD	5.7′ TFT LCD	4.3′ TFT LCD
Optional Interface	USB, GPIB	RS232(Standard),GPIB	RS-232 (Standard)	RS232(Standard),GPIB
Dimension & Weight	254×103×384mm, Approx.3 kg	330×155×300mm,Approx.4.2kg		450×100×475mm, Approx.6.0 kg
