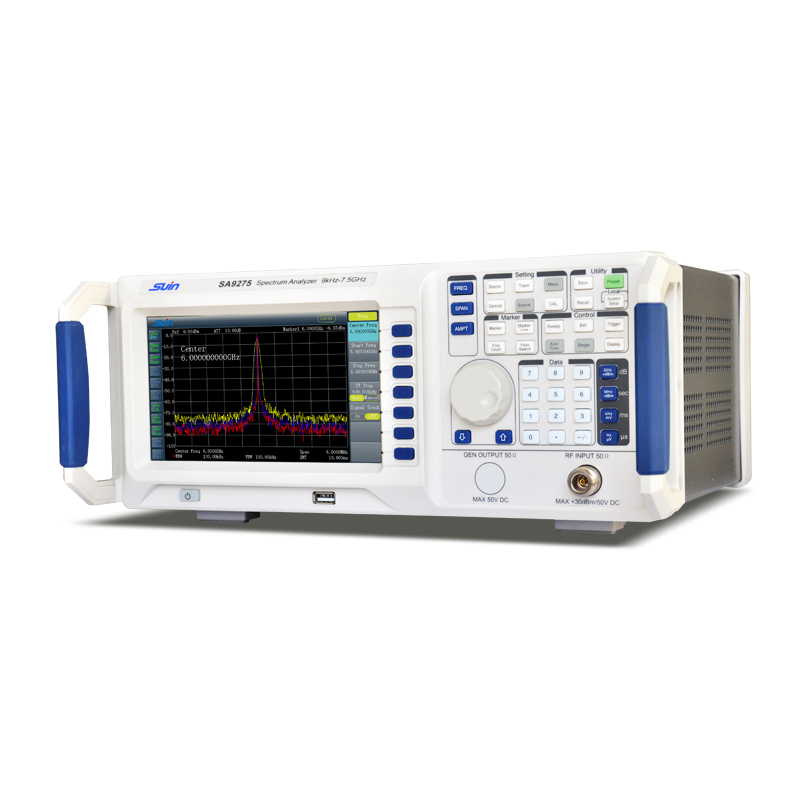

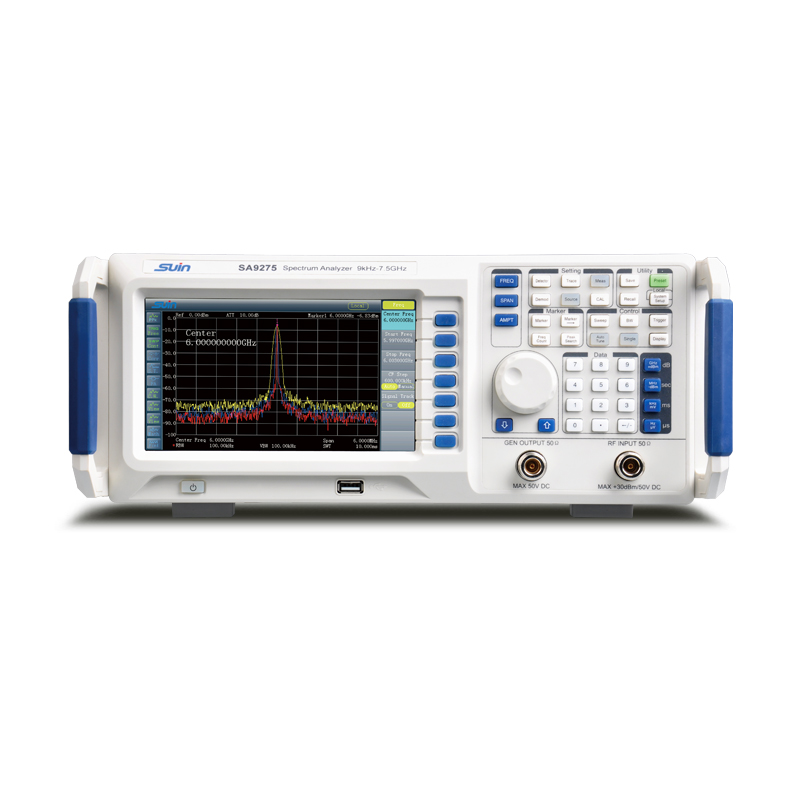

Анализаторы спектра Серия SA9200

Applications

R&D, education, production, maintenance, pre-compliance

Design Features

Frequency range from 9kHz to 7.5GHz
-160dBm Display Average Noise Level (Min.)
< -100 dBc/Hz @10 kHz Offset Phase Noise (Typ.)

Total Amplitude Accuracy < 0.8 dB
Preamplifier and EMI filter are standardly configured

Advance function interface

1. Adjacent Channel Power

2. Occupied bandwidth

3. Different analysis width

4. Scalar network analyzer

Spectrum Analyzer Questions & Answer

When you are considering the purchase of a spectrum analyzer, you may have some questions, so let me answer them one by one:

The difference between a spectrum analyzer and a frequency analyzer lies in their application focus. A spectrum analyzer is primarily used to display the amplitude and frequency distribution of a signal’s spectrum, while a frequency analyzer is more focused on accurately measuring and analyzing the frequency characteristics of a signal.

The difference between an RF power meter and a spectrum analyzer lies in their primary functions. An RF Power Meter is used to measure the power level of an RF signal, while a Spectrum Analyzer is used to analyze the spectral characteristics of a signal, including frequency distribution and amplitude.

RF Spectrum Analyzer is very versatile and can help you analyze the spectral characteristics of RF signals for applications such as signal monitoring, spectrum management, and wireless network optimization.

Spectrum analyzers can often be used as frequency counters, but this depends on the specific model and features. Some high-end spectrum analyzers have a frequency counter function that can accurately measure the frequency of a signal.

The main types of spectrum analyzers include scanning spectrum analyzers based on super-exception technology, real-time spectrum analyzers based on FFT technology, and vector signal analyzers. You can choose the right type according to your specific application needs.

You may also hear aliases for spectrum analyzers, such as spectrum meter, spectrum analyzer, spectrum scanner, and so on.

The accuracy of a spectrum analyzer depends on its technical parameters, performance characteristics and other factors. Generally speaking, high-end spectrum analyzers have high accuracy and precision to meet the needs of various precision measurements.

Some spectrum analyzers have the function of measuring signal power, but it is recommended that if you need to measure the power accurately, it is better to use a professional RF power meter.

When purchasing a spectrum analyzer, you need to consider its technical parameters, performance characteristics, scope of application, price and other factors to ensure that you choose the most suitable product for your needs.
